| Lieu d'origine: | Jiangsu Chine |
| Nom de marque: | longdai |
| Certification: | ISO9001 |
| Numéro de modèle: | LD-201 |
| Quantité de commande min: | 1 set |
|---|---|
| Prix: | Negotiatable |
| Détails d'emballage: | Polywood d'exportation |
| Délai de livraison: | 20 jours |
| Conditions de paiement: | L / C, T / T |
| Capacité d'approvisionnement: | 2000 ensembles par an |
| Nom de produit: | Machine de asséchage de boue de presse à vis | Nom: | Filtre-presse de ceinture de déshydrateur de boue |
|---|---|---|---|
| Capacité: | 1-2500kgs/h | Application: | Application |
| autre nom: | Déshydrateur de boue de vis de volute | Mots clés: | Traitement en spirale empilé de boue |
| Tension: | 220v 380V 50HZ 60HZ (ou adapté aux besoins du client | Fonction: | Séparateur de solide-liquide |
| Avantage: | Faible coût | After Garantie Service: | Support technique de vidéo \ appui \ pièces de rechange en ligne |

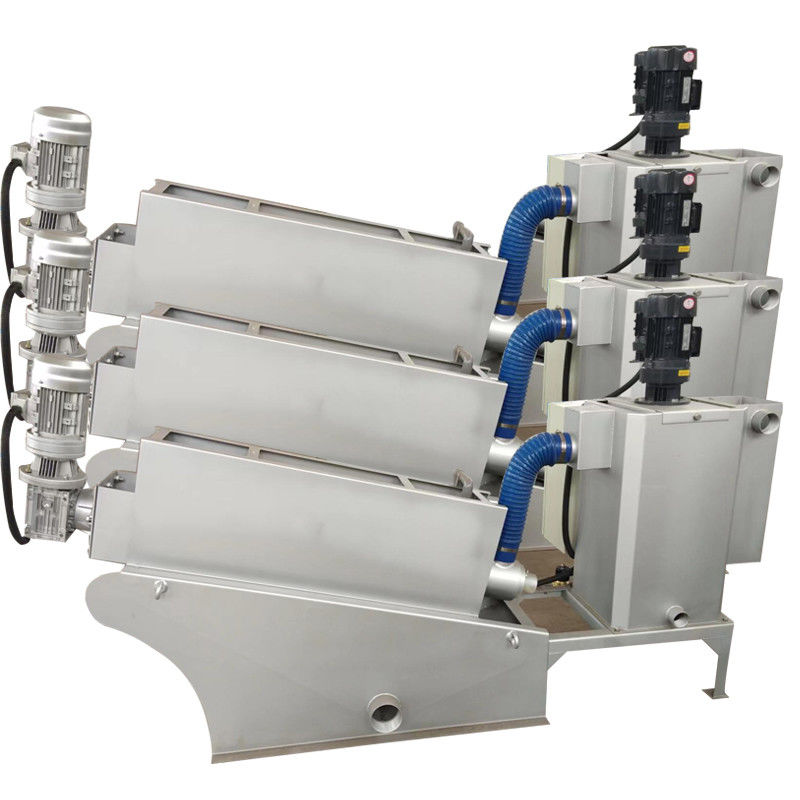

Wholesale Best-Seller: Multi-Screw Press Sludge Dewatering Machine for Wastewater Treatment
Product Overview
The screw press sludge dewatering machine is widely used in municipal sewage treatment projects and various industrial sectors, including petrochemical, light industry, chemical fiber, paper manufacturing, pharmaceutical, and leather processing.
Key Advantages
Broad Applicability: Suitable for diverse sludge types across multiple industries.
Anti-Clogging Design: Ensures smooth, uninterrupted operation with minimal maintenance.
Fully Automated Operation: Enables continuous, labor-free dewatering processes.
Cost-Efficient: Reduces operational expenses through low energy consumption and minimal manual intervention.
Eco-Friendly: Prevents secondary pollution during sludge treatment.
Lightweight & Durable: Compact structure with high corrosion resistance for long-term use.
Reduced Project Investment: Eliminates the need for additional thickening tanks and complex infrastructure.
Enhanced Phosphorus Removal: Improves phosphorus extraction efficiency in treated sludge.
Working Principle
Sludge first undergoes gravity concentration in the thickening section and is then conveyed to the dewatering zone. As the sludge advances through the gradually reducing filter gaps and screw pitch, it encounters increased mechanical pressure due to the back-pressure plate’s restrictive effect. This process continuously reduces sludge volume, achieving efficient and thorough dewatering.
Parameter
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 | |
|
Handling capacity (m3／h) |
Ind concentration S．S．0.2～0.5％) |
0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
|
Ind concentration (S．S．0.5～2.0％) |
0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 | |
|
Ind concentration (S．S．2.0～5.0％) |
0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 | |
|
Exdry amount (kg／h) |
Ind concentration (S．S．0.2～0.5％) |
0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
|
Ind concentration (S．S．0.5～2.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
|
Ind concentration (S．S．2.0～5.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 | |
| Power power(KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 | |
|
contour size of the unit(s) (ww) |
L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 | |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 | |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 | |
Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
